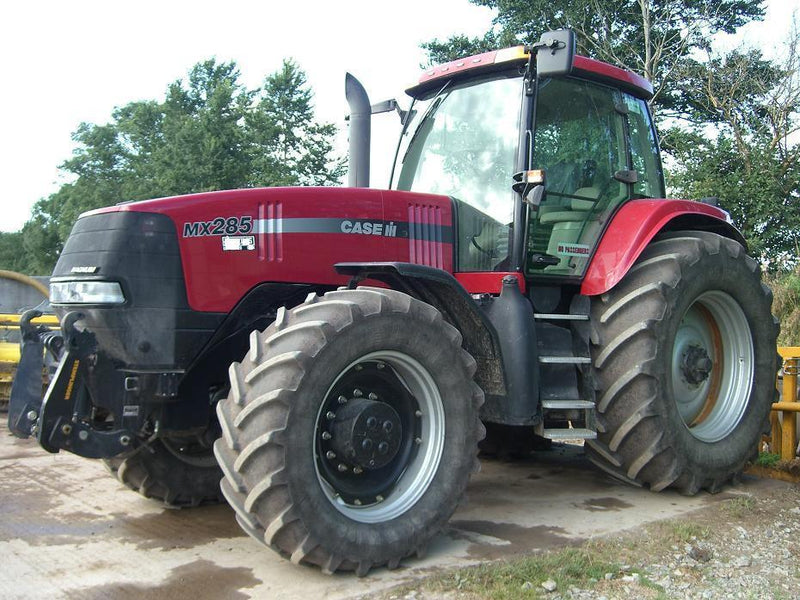

Case Ih Mx210 Mx230 Mx255 Mx285 Magnum Tractor Full Complete Service Repair Manual PDF

This Complete Factory Case IH MX255 and MX285 Magnum Tractor Service Repair Workshop Manual includes needed instructions to maintain and service your tractor using detailed diagrams and manufacturers specifications.

IMPROVED PDF MANUALS HAVE: Bookmarks, Searchable Text, Index and Improved Quality.
__________________________________

* INSTANT DOWNLOAD - NO WAITING
* LANGUAGE: English
* FORMAT: PDF
* COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc
* PAGES: 1296
* SEARCHABLE - BOOKMARKED - INDEXED
__________________________________

CONTENTS:

BOOK 1:
Standard Torque Specifications
Safety, General Information/Maintenance Schedule
General Specifications and Special Torques
Engine Removal and Installation
Fuel Tank Removal and Installation

BOOK 2:
Electrical System How it Works and Troubleshooting

BOOK 3:
Steering Column and Steering Hand Pump
Powershift Transmission System
How it Works and Troubleshooting
Transmission Input Shaft and Drive Plate
Input Drop Box
Engine Frame and Input Drop Box Split
Speed to Range Transmission Split
Speed Transmission
Range Transmission to Rear Frame Split
Range Transmission
Transmission Control Valves and Inching Valve

BOOK 4:
Rear Frame
Hydraulic Pump Drive
Mechanical Front Drive MFD Control System
How it Works
Differential Lock Control System
How it Works
MFD Clutch And Output Shaft Removal Without Tractor Split
MFD Drive Shaft
Limited Slip MFD Differential
Locking MFD Differential
Rear Axle and Planetaries
Power Take Off Control System How it Works
MFD Planetary Hub, Steering Knuckle, and Axle Drive Shaft
Suspension MFD Axle
Suspended MFD Axle System
How It Works and Troubleshooting
Brake Valve
Brake Cylinders
Park Brake
Trailer Brake System
How It Works

9001: PEDAL AND PEDAL SWITCH ADJUSTMENTS
Inching Pedal Switch Adjustment
Brake Pedal Adjustments

9020: AIR CONDITIONER SYSTEM SERVICE

ELECTRICAL AND HYDRAULIC SCHEMATIC
